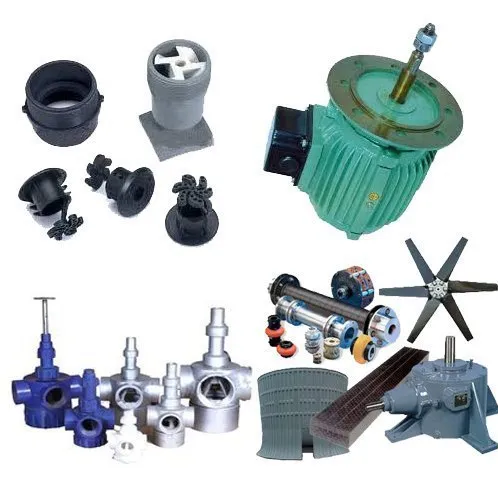

Other Parts
| Complete bearing sets, Oils Seals, 'O' Rings, Gaskets, Shims, Complete Fan Assembly Clamps with fasteners, I & U bolts with lock nut, washer, Flow control valves and its spares, SS 304 Grids and FRP Grids, Tie clip, Bench Tie |

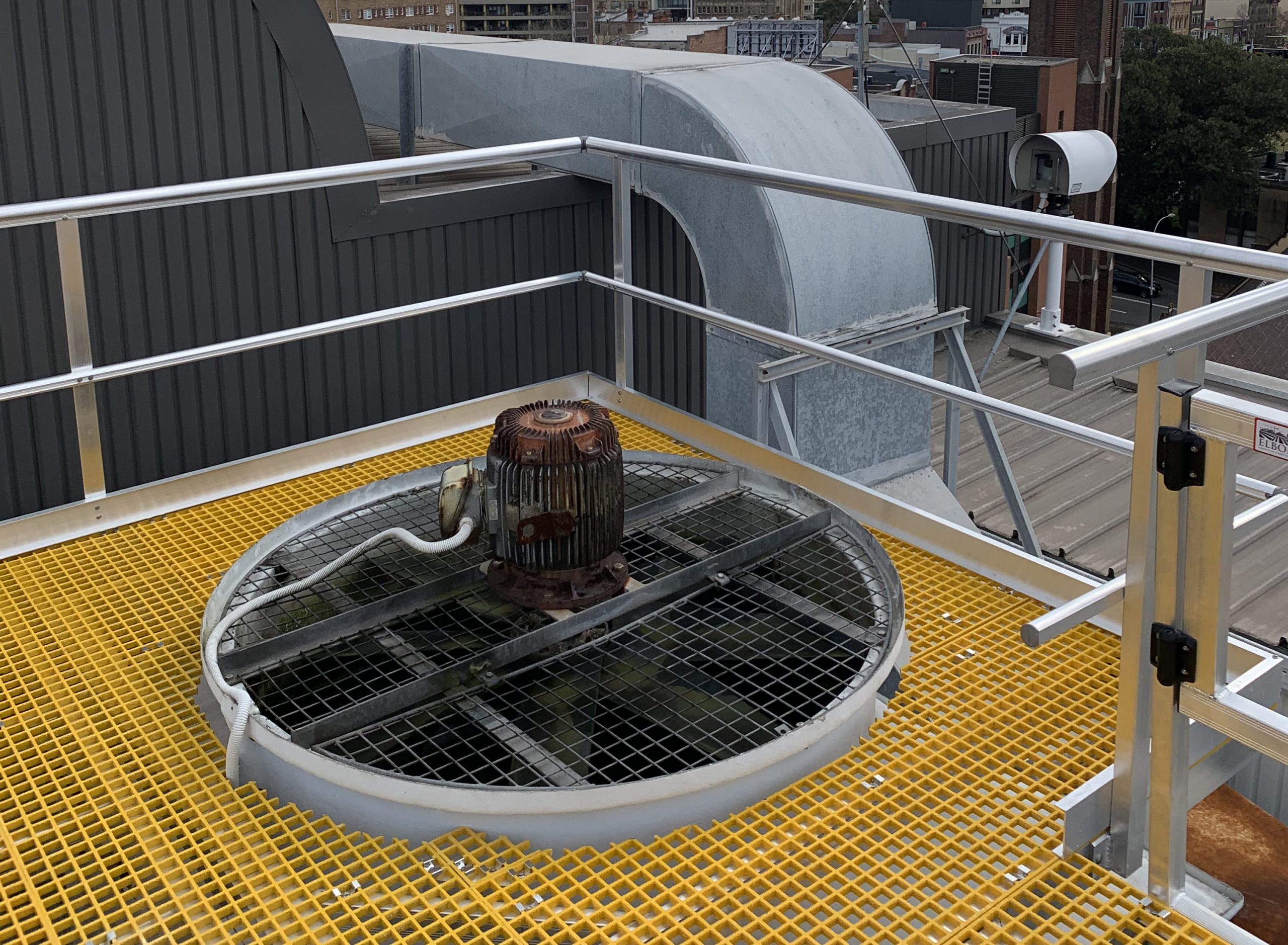

Access
Access ladder makes it easy to reach the fan & motor are made of treated timber/ RCC. A walkway is provided in the Plenum Area to give access to Drift Eliminator maintenance. Hand rail is provided in the working areas.
Hardware
MS- HDG/SS 304 / SS316 hardware for all applications of cooling towers. and the nails are of SS 304/ SS 316

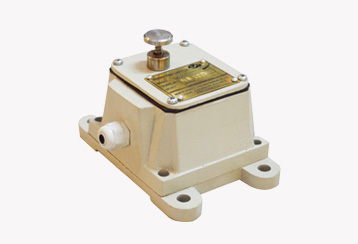

Vibration Switches
A multipurpose safety switch is provided to ensure that the motors shut off in case of excessive vibrations or low oil level in the gear box.
Casing and Louvers
It is made from resilient FRP sheets or using corrugated asbestos cement board are available in various sizes.
Nozzles
Made of corrosion resistant plastic. Uniform water distribution. Water capacity can be readily changed within single nozzle body. Easy twist lock installation and removal needs no tools .

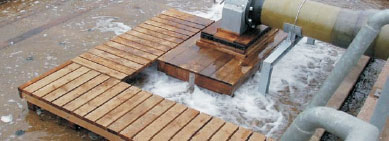

Hot Water Distribution
In cross flow towers, the hot water basin is open gravity type and is made of treated timber / plywood fitted with PP gravity target nozzles.
In counter flow towers, the water distribution is through a header made of MS- HDG/FRP pipes fitted with SPSC Nozzles in PP material.
Timber / RCC Structure
Timber - Structure frame work is of best quality pine wood which is subjected to pressure impregnation by Chromate Copper Arsenate to prevent it from any bacterial attack.
RCC - Structure Frame work is done in M30 grade of RCC as per IS standards.
MOTORS
TEFC motors flange / foot mounted, IP 55 protected. 415 V, 3phase, 50 Hz weather proof and are specially designed for cooling tower application. Make BBL/Crompton/ Siemens or Equivalent.
PVC DRIFT ELIMINATORS
Newly developed PVC Eliminators used to restrict drift losses to less than 0.05% with minimum pressure drop. Reducing the operating cost Low maintenance and easy to clean.
PVC FILLS
A wide range of splash type and film flow type fills are available in Timber & PVC material for cross & counter flow cooling towers, Fills are supported in FRP /SS 304 grids which are further firmly attached to the structure.
DRIVE SHAFTS AND PARTS
Dynamically balanced flexible hollow tubular driveshaft with pin bush type coupling (MOC - MS- HDG, SS 304, SS316 ) for all types of cooling towers. Coupling made of MS- HDG, SS 304, SS316 are available in various sizes to suit your requirement.
GEARBOX
Specially designed spiral bevel gear boxes are used with overall efficiency around 97% and minimum service factor of 2.0 as specified by CTI standards. Make Premium Transmission or equivalent ,in all types of series and Ratio and its spares.
FRP FAN STACK / FAN CYLINDER
All large cooling towers are invariably provided with velocity recovery cone to reduce the pressure drop and thereby increase the energy saving.FRP fan stacks of all diameters and heights, for Minimum Pressure losses.
FRP FAN ASSEMBLY
Clayton Fans are high efficiency energy saving axial flow type with FRP fan blades of true aerofoil design and MS HDG/SS 304 Hub. Diameter ranging from 2 feet to 33 feet Also available in Aluminum.
